1/4" Dado Plane

$684.00 AUD

Note: Please place your order and we will post your plane once made. The current wait time on this plane is approximately 1-2 weeks.

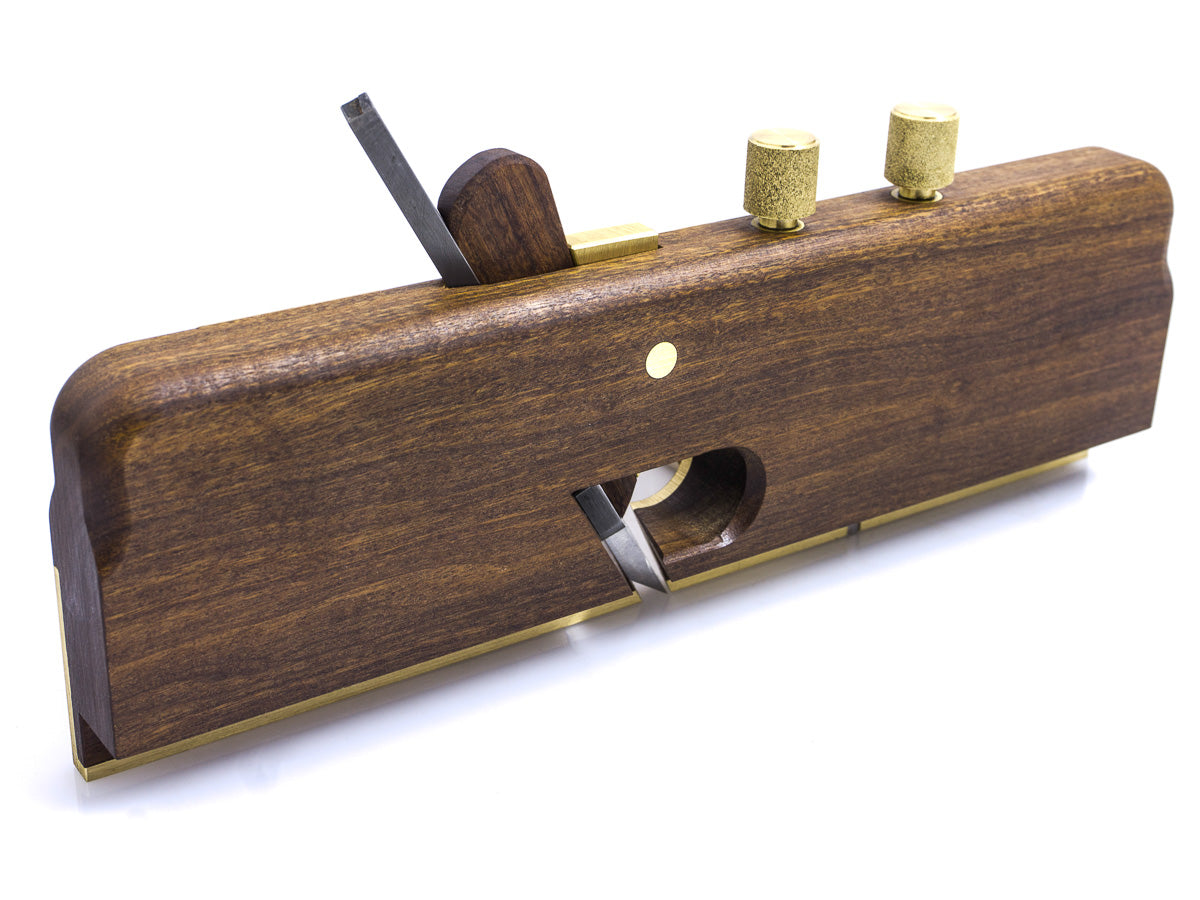

This gidgee 1/4" Dado Plane is 230mm long x 22 mm wide x 75mm high.
Weighs 0.9 Kg and has a 3/16" thick x 1/4" wide Tool steel blade hardened to Rc 62-64, plus a HSS T1 nicker Blade 1/4" wide with 9mm of useable blade which will last a long time. And the nicker is mechanically adjustable for easy set up.

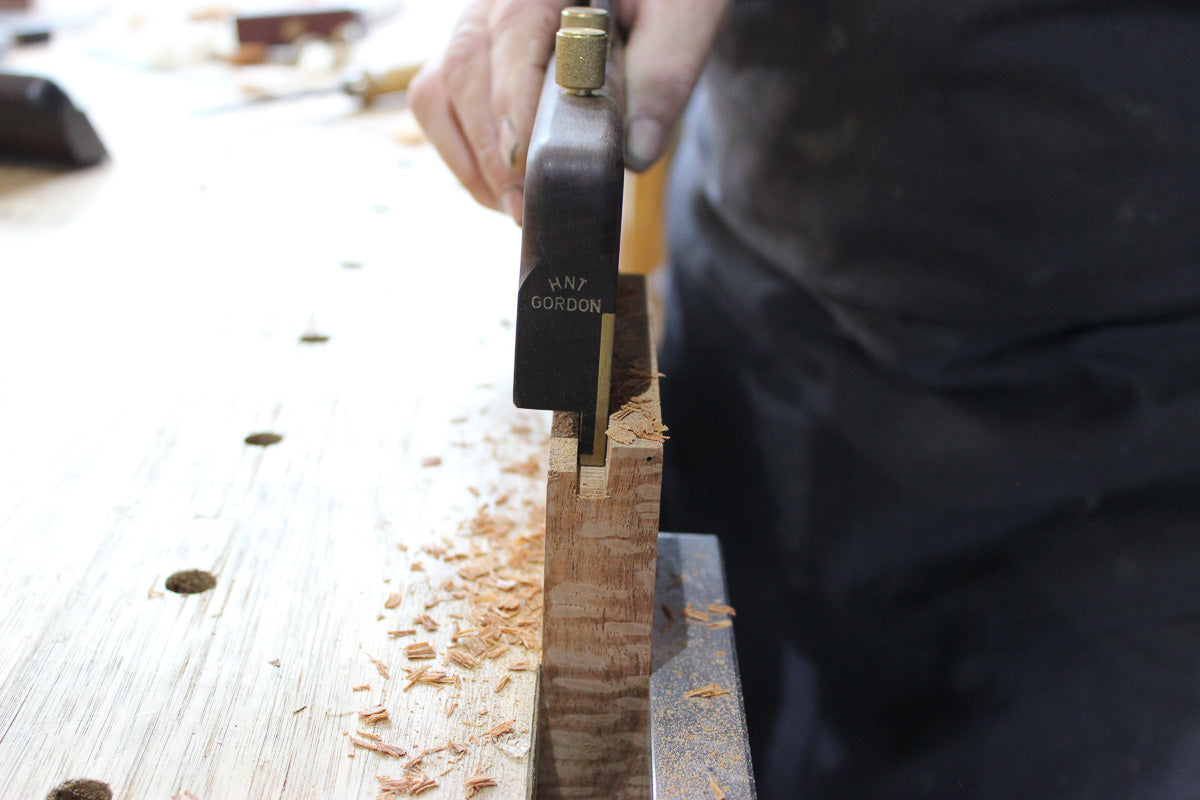

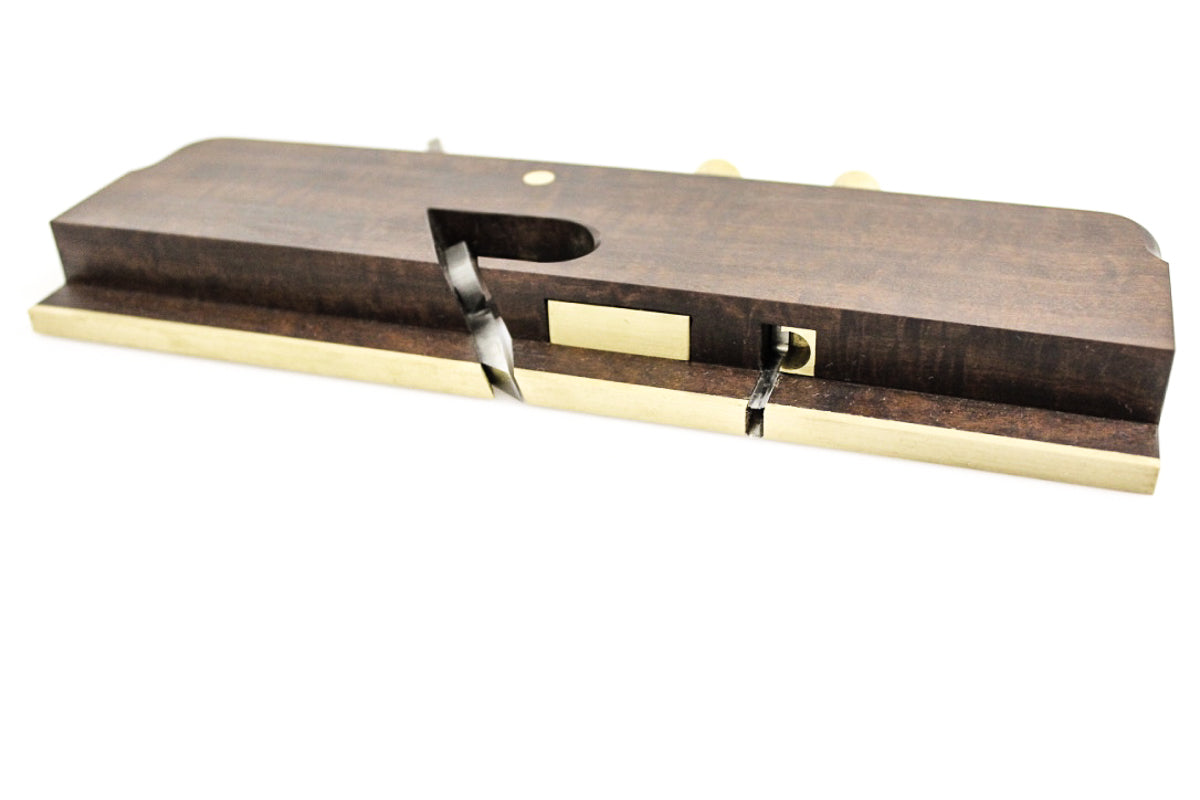

It has a 60 degrees blade angle skewed at 20 degrees for a smooth finish across the grain or with the grain in cranky wood. Used to make a 1/4" dado (grove) across the grain or with the grain. The precision made nicker ensures a very neat and accurate dado as the wood fibres are cleanly severed when planing across the grain. The plane also has a mechanically adjustable depth stop so you can make the dado to a precise depth.

The plane comes with a complete guide for use and sharpening.

Customer Reviews
5.0 Based on 3 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Gary P.
United Kingdom United Kingdom
I recommend this product

Works out of the box

This tool is incredible. With a good fence clamped to my work, it produced a perfect housing joint within five minutes of getting it out of the box.

manuel w.
United States United States
I recommend this product

awesome workmanship. I have put it to use, and would buy the whole line of bench and joinery planes if I could.

excellent, repeat, excellent

Paul. J
I recommend this product

If you need to create a dado, this is the tool

I hate routers and the risks they pose. After purchasing one of these Dado planes I can create perfect dado's every time and still hear my music. We are very lucky to have a tool maker like Terry who makes these beautiful tools that will become heirloom tools. Thank you Terry.
