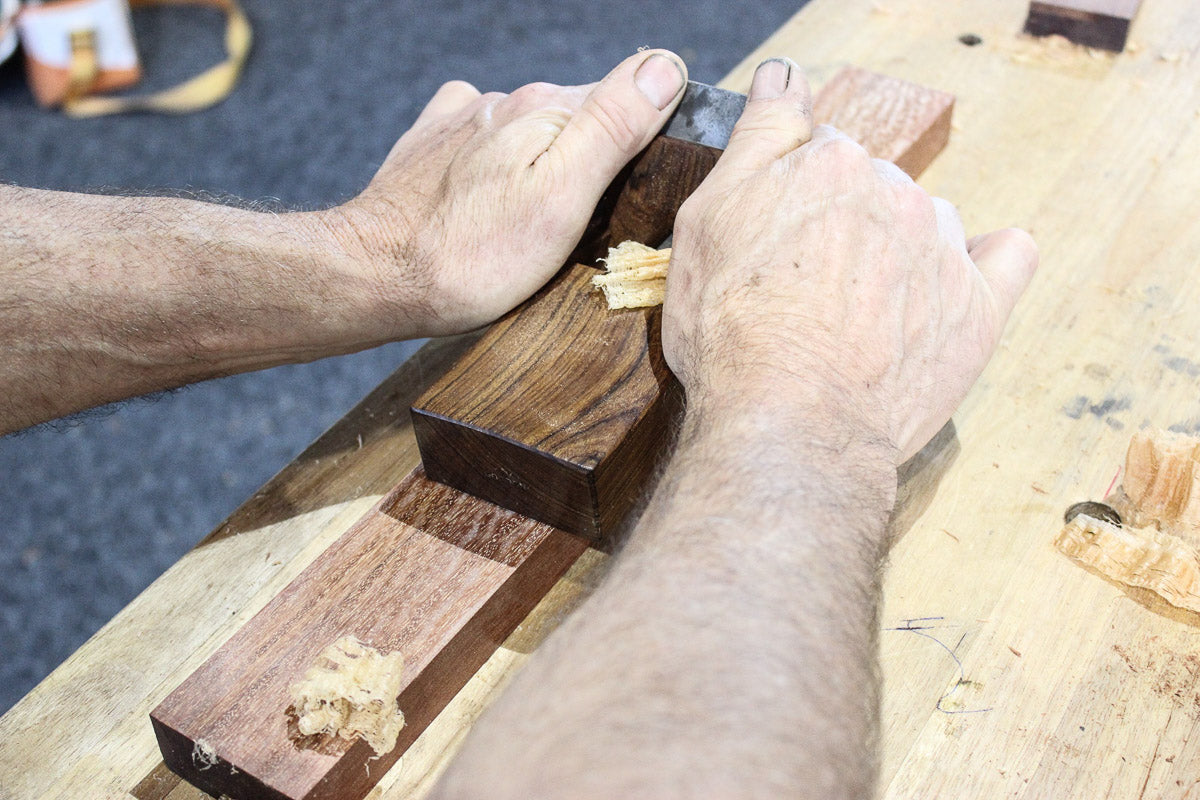

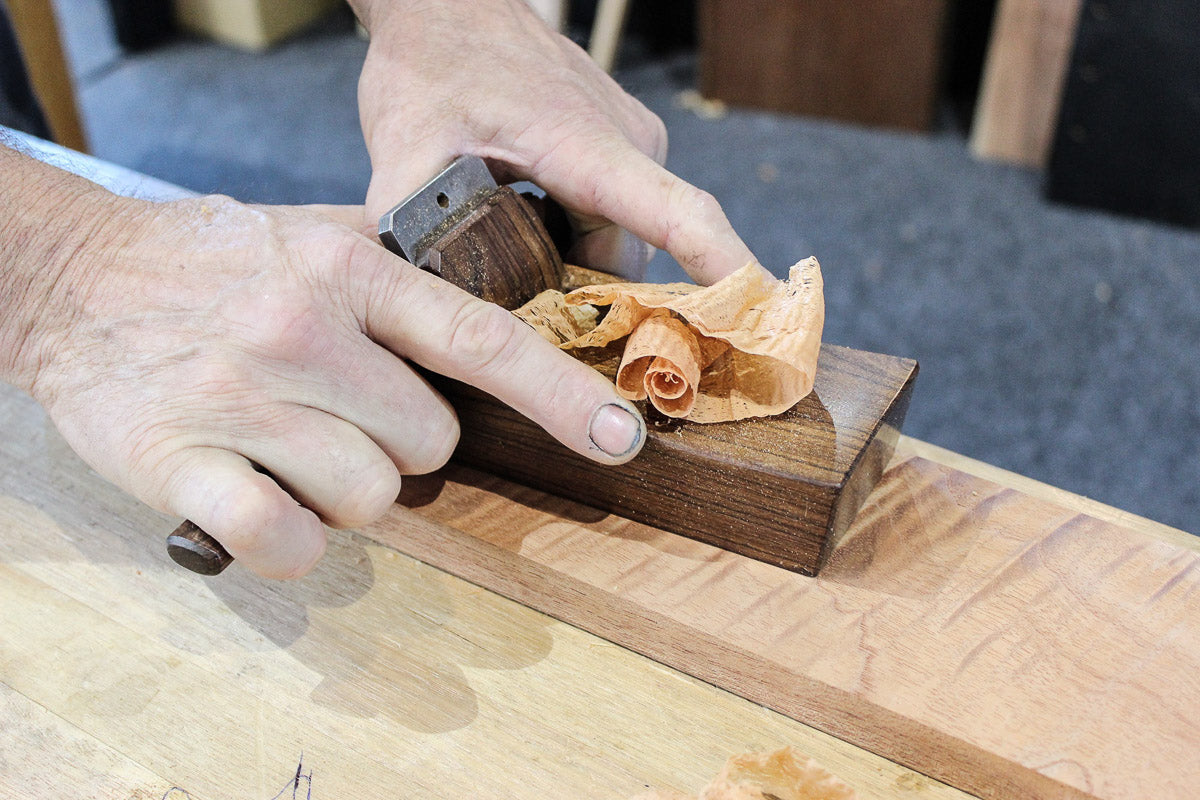

This smoothing plane is a necessary component of your hand tool collection, with the ability to smooth an array of timber surfaces with little to no sanding required. The plane can be used as a plane or as a scraper, which ultimately provides you with two tools in one. To use the plane in planing mode you place the blade in bevel down, which results in a blade pitch of 60 degrees. By reversing the blade to bevel up you are effectively creating a 90 degree blade pitch which is the same as a cabinet scraper.
We have designed our planes to have a 60 degree blade pitch due to the superior results you will achieve on hard woods, or curly/reversing grain. You will also get great results on soft woods too, especially if there are changes in grain direction as you will be able to plane both with and against the grain.
The style of this plane is excellent as you use the plane square on (either behind or in front depending on whether you are pushing or pulling the plane). Having the option to push or pull the plane makes certain jobs easier, for example planing a table top. You can push the plane half way through the table and then pull it from the other end of the table, meaning you are getting a full length shaving. It also means your body is more in balance. The handle on this plane is removable on a taper if required.
This plane is made from gidgee and is 210mm long x 67mm wide x 38mm high, and has a weight go 0.9kg. It has the option of a 50mm wide x 6mm thick x 97mm long Tool Steel (TS) blade hardened to Rc 62-64, or a High Speed Steel (HSS) blade hardened to Rc 62. The HSS blade is ideal if you plan to reverse the plane to bevel up and use it as a scraper on hard timber.
A well made product that lives up to the expectations.

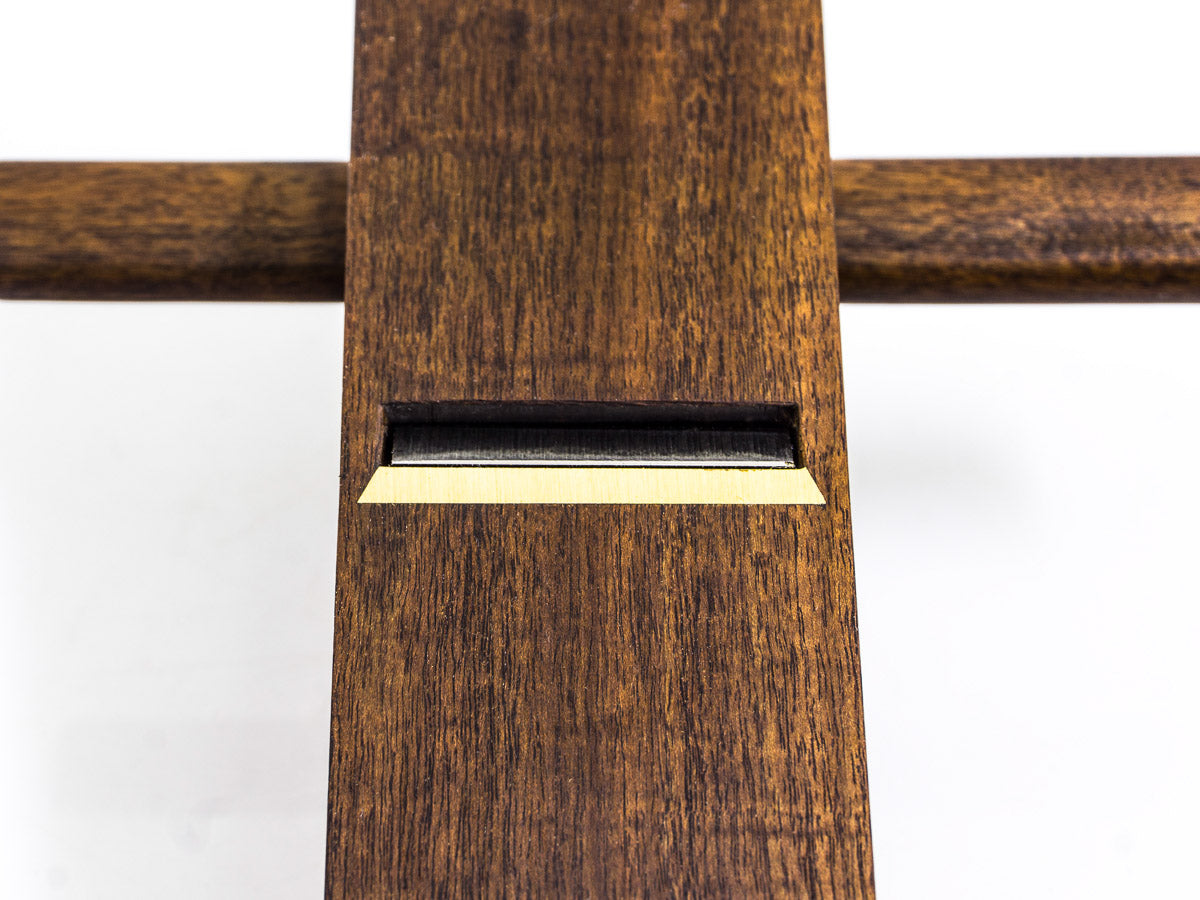

The plane is a beautiful tool, as others have commented the Gidgee wood is beautiful and surprisingly dense. Precision in workmanship is to my eye as high as is possible in wood. The tiny width of the mouth opening with the blade in place is an example of this, as is the smoothness of all surfaces including the blade bed. After some lapping and final honing of the blade I tested the plane on a difficult piece of curly maple which produced tearout with my usual 45 degree planes no matter how sharp the iron. Ultra thin shavings were easy to produce, and the resulting surface was free from tearout, just as promised, and also my main reason for importing a plane from Australia to Sweden. The general feel was one of predictability and quality. The separate Asian style handle was a little unfamiliar to me, but the plane is possible to use without it if one prefers, like for example Krenov style planes which also lack handles. The simplicity of wooden planes without chipbreakers is wonderful. Overall I am very satisfied so far!
Something to treasure for life.
I already own two of the more western style planes and as good as they are this one is in a league of its own. Beautifully designed and beautifully made. Even the high end iron equivalent simply cannot compare. Something to treasure. Australia should be very proud of HNT Gordon.
Beautiful tool and great service
The plane is beautifully made and intuitive to use. I had a small issue with mine, which is understandable with hand made products like these, but Terry provided exceptional after sales service and actively fixed the issue without question. Very happy.
This plane is of heirloom quality that can be passed down to your kid's (and they would love it). The finishing is superb and hss blade is worth the extra investment as it takes a beautiful shaving and holds a keen edge (caution when you remove it from the packaging as it is scary sharp!) I would definitely recommend this beautiful smoother for anyone who appreciates quality and demands performance. When I can afford it I definitely will be buying the shoulder plane next
Anti - Tearout Weapon of Choice
Its Gidgee vs Yew and yes sir I think its a KO (Knock Out) for tear out. I had a lot of it off of the planer and I am gradually taking it out with the smoother. The plane certainly isn’t causing any and the grain in this Yew is mad *** ! Seems like every 2 inches it changes up. I gave the scraping option a try and that is wonderful as well. I will definitely order the HSS blade for that function. I have virtually no experience setting up wooden planes with the wedge (and certainly none with Asian style ones) but your videos make it so clear that I had no problem whatsoever and my mallet had a good breaking in. You can indeed get some very fine adjustments. The little palm smoother is super handy too, loving these tools. The side profile of these planes makes me think of Riva speed boats ! Its the first time I am working with yew and it is a lot harder than I had expected. Those clusters of pin knots are really tough. I believe that in ancient times it was considered a sacred wood which is probably the reason that yews are planted in graveyards here. Poisonous as **** though ! I am just cleaning up my doors and getting ready to fit them. Once again the smoother is shockingly efficient . There is absolutely no difference planing with the grain or against ! I got some real nice tight joints (for once) on my mortise and tenons. Doors are always tricky for me with twist. Astounded at how this blade holds an edge, I have only sharpened it once and that was a very quick one at that. I hope you liked the photos I sent you of planing the panels. Am quite pleased with that Yew. Cheers, John
