Side Round Planes
Note: Out of stock. Please place your order and we will post your plane once made.

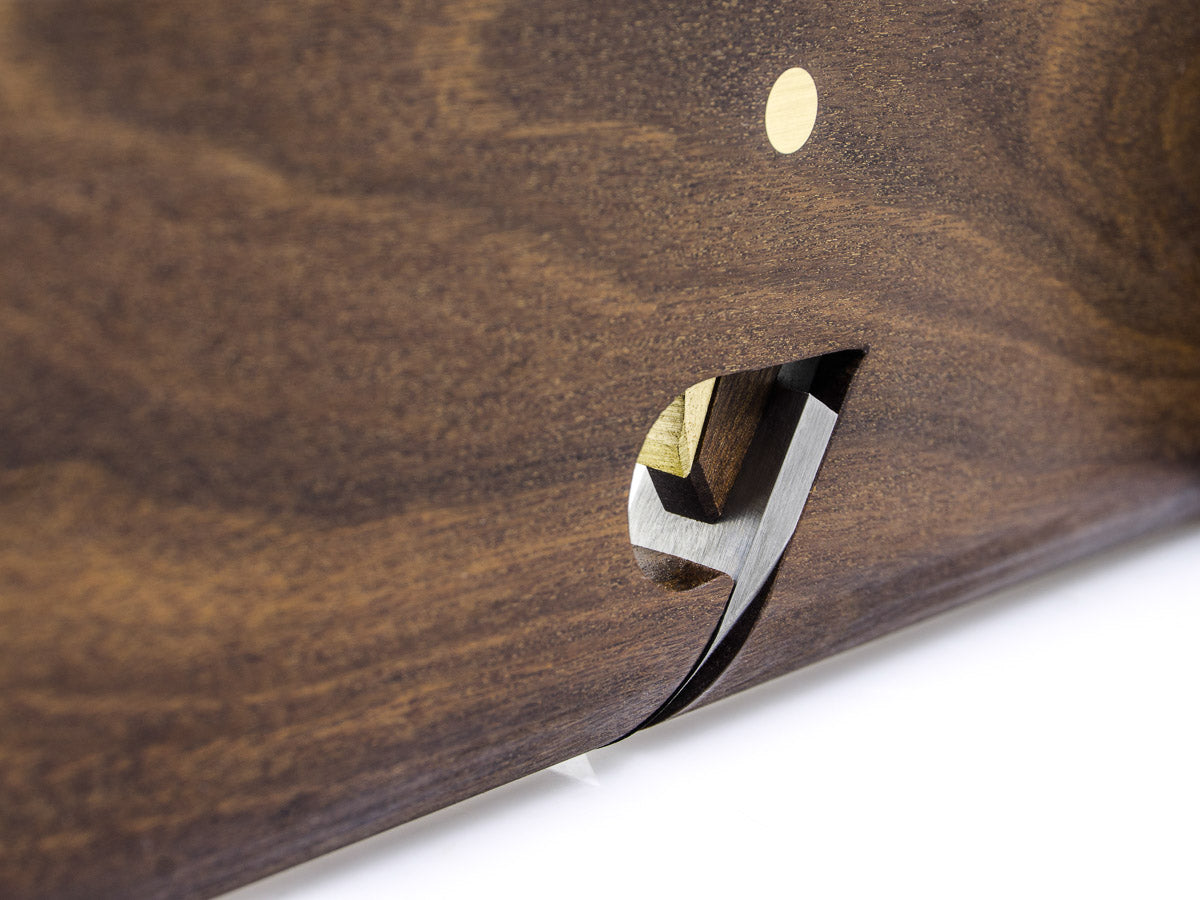

These gidgee 1/2" Side Round Planes are 225mm long x 12.5 mm wide x 67 mm high. Weigh 0.3Kg each and have a 3/16" thick x 1/2" wide Tool steelblade Rc 62-64 shaped to suit the sole of the plane.

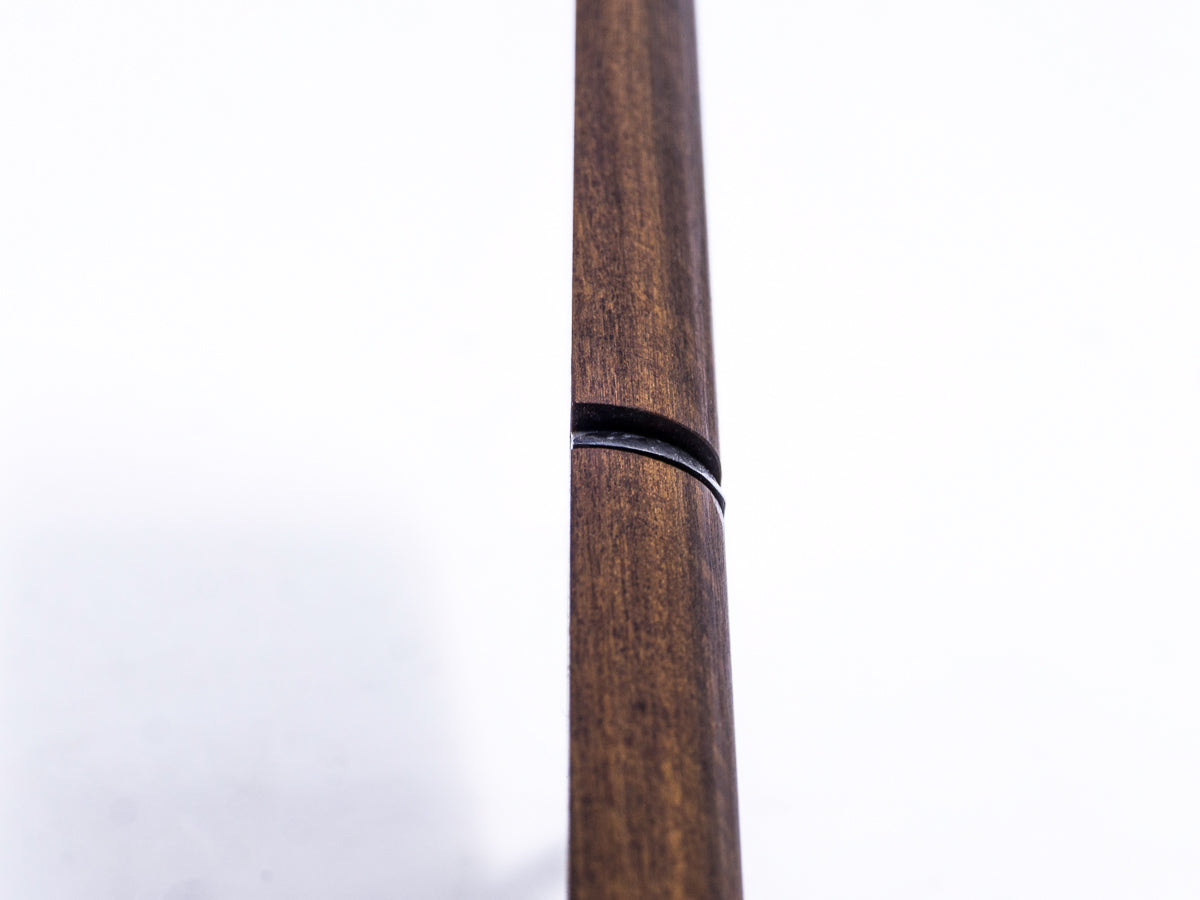

They have a 60 degrees blade angle for planing. The sole is a 1/2" radius, 90 degree segment.
Used to sink a curved surface adjacent to a vertical surface in a moulding. These planes are very desirable when making complex moldings.

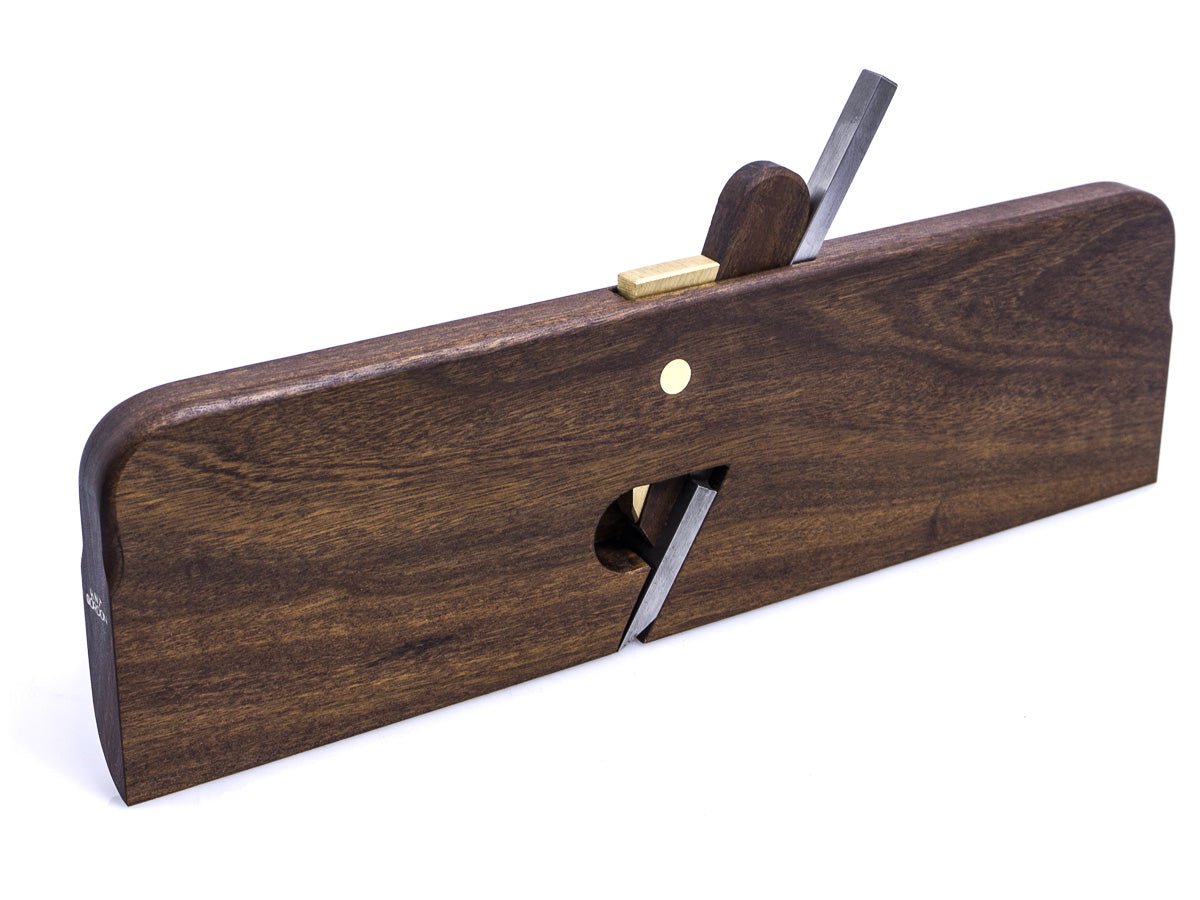

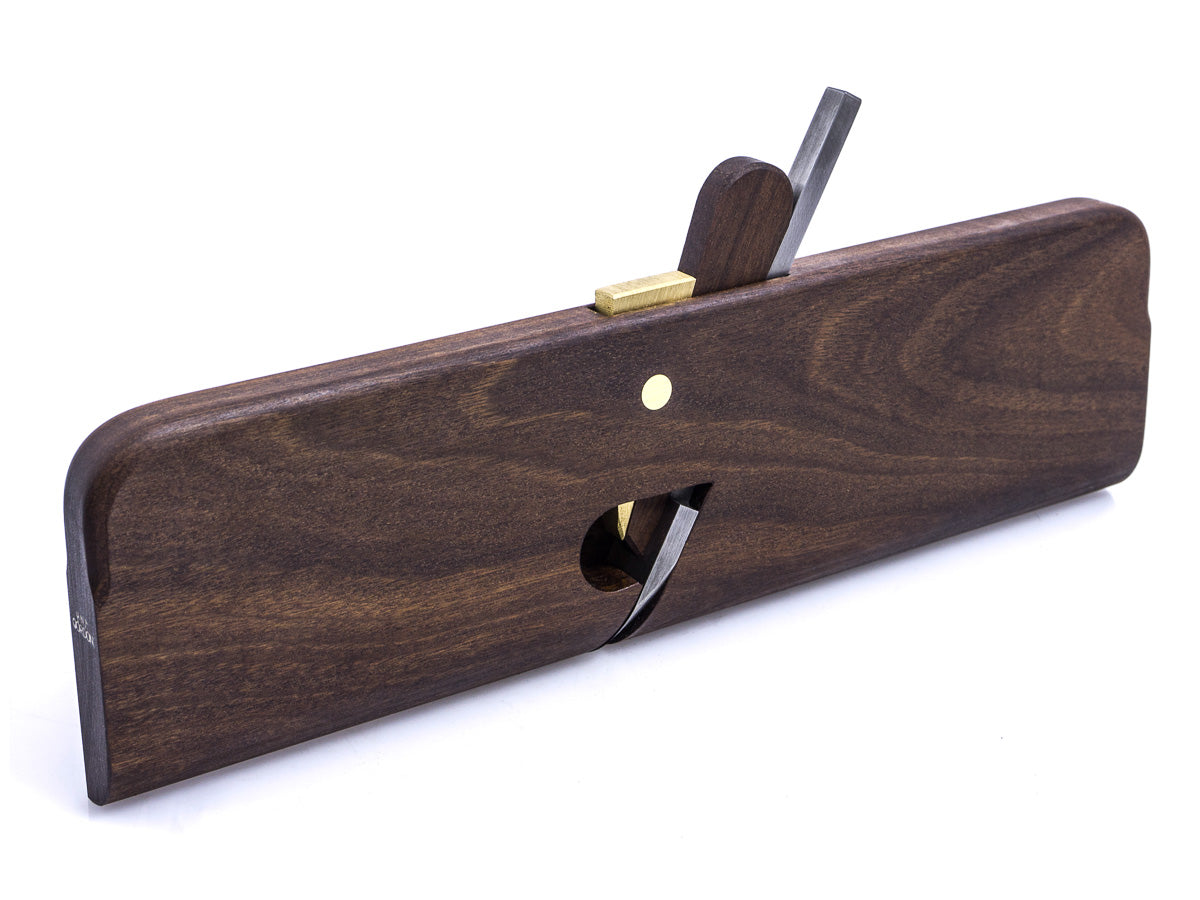

The side of the plane with the curved edge indicates whether it is a left or right hand plane. e.g. If the curved edge is on the right hand side when the plane is facing forward (HNT Stamp at the front), it is a right handed plane.
