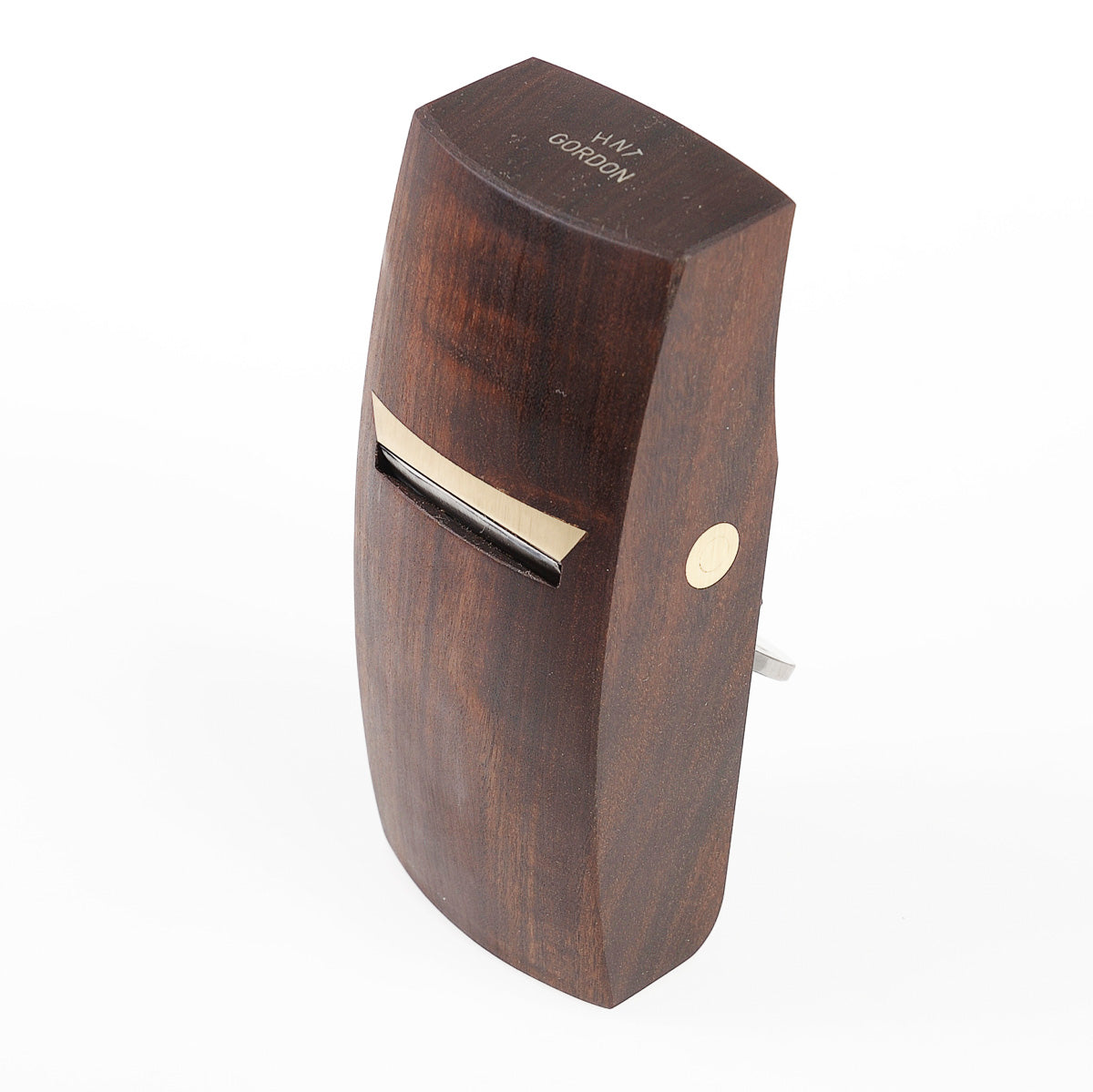

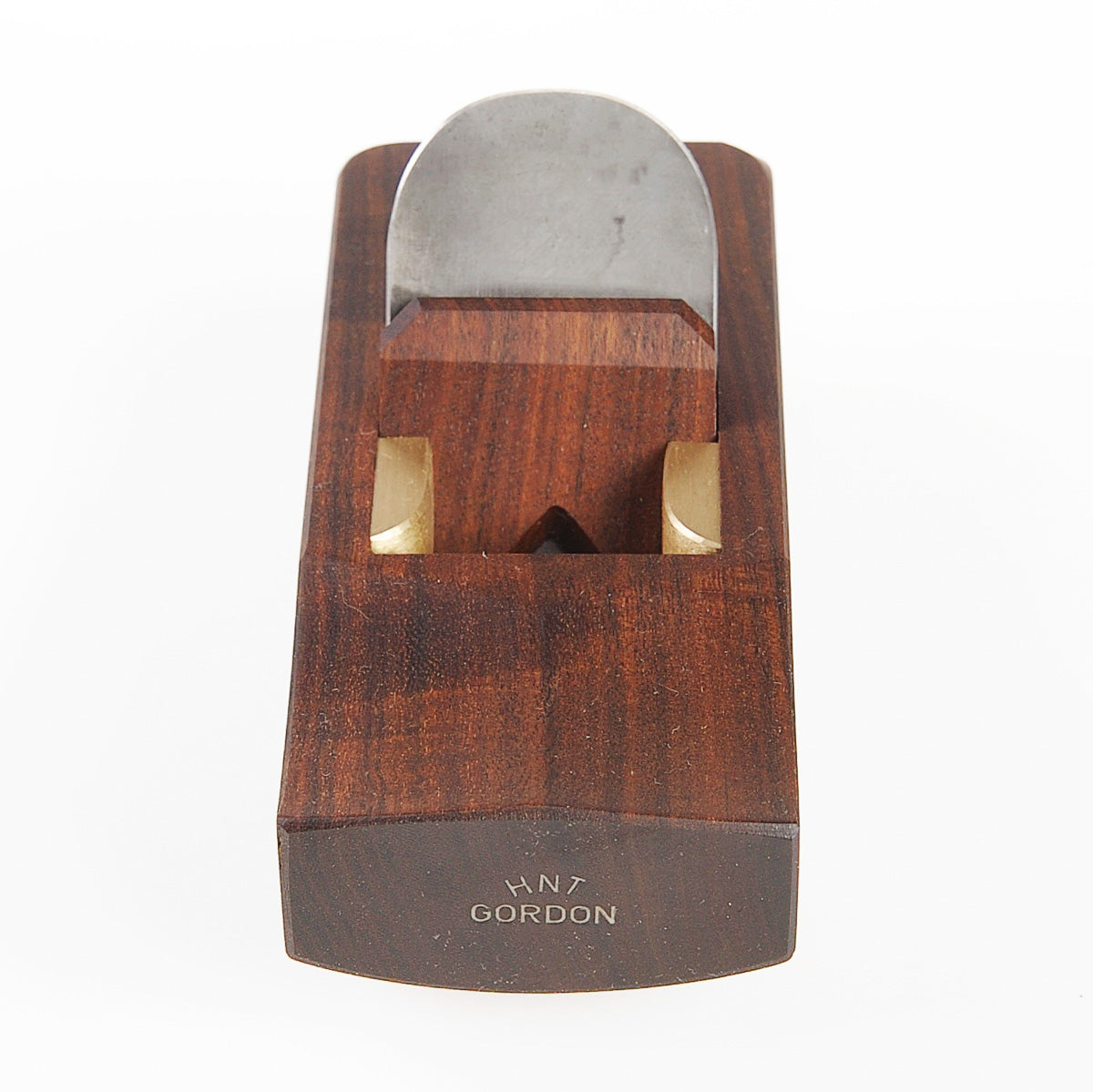

Radius Plane
The radius plane is 130mm long x 55 mm wide x 38mm high. The longitudinal radius is 230mm (9") and across the plane the radius is 75mm (3").
Weighs 0.45 Kg and has a 1/8 " thick x 1 1/2" wide blade. You have the option of a Tool steel (TS) blade hardened to Rc 62-64, or a High Speed Steel (HSS) Blade hardened to Rc 62. The HSS is ideal if you plan to reverse the plane to bevel up and use it as a scraper on hard timber.

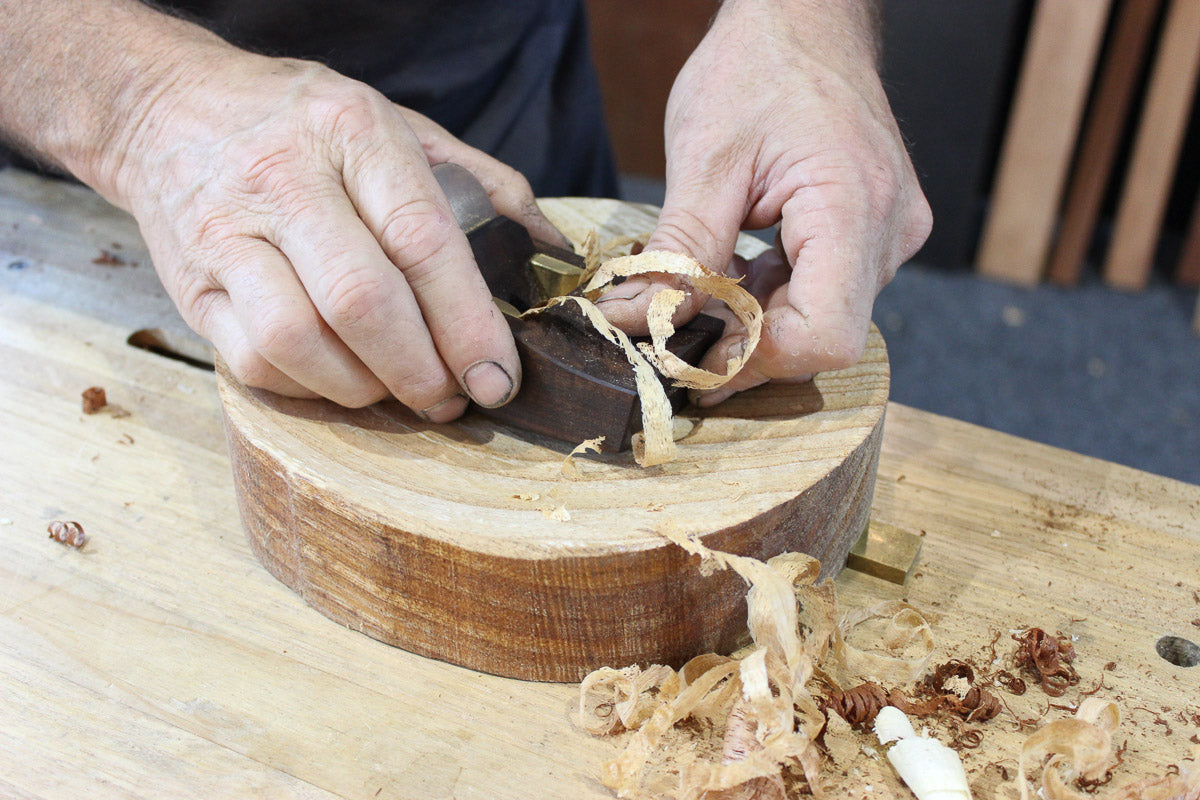

It has a 55 degrees blade angle and is specifically designed for shaping the seat of a windsor chair, or other tasks that the radius of the sole will suit.
This plane can also be converted to a scraper simply by reversing the blade so would be very useful if you are working in very hard canky woods.
Australia
United KingdomPlane
Not used yet but clearly very high quality item and great customer service helping me out with tracking the item from Australia to the UK.
United StatesExcellent quality and beautiful
Worked as designed to shape the seat of my rocking chair
United StatesExcellent quality and beautiful
Worked as designed to shape the seat of my rocking chair
