HNT Gordon & Co. Classic Planemakers Australia

A55 Trying Plane

$420.00 AUD
Blade Type

NOTE: We are currently out of stock in gidgee A55 Trying planes, and we won't have stock until early October.  Please contact us at planemaker@hntgordon.com.au  if you would like to buy one in the meantime as we do have other timber options that we can offer you.

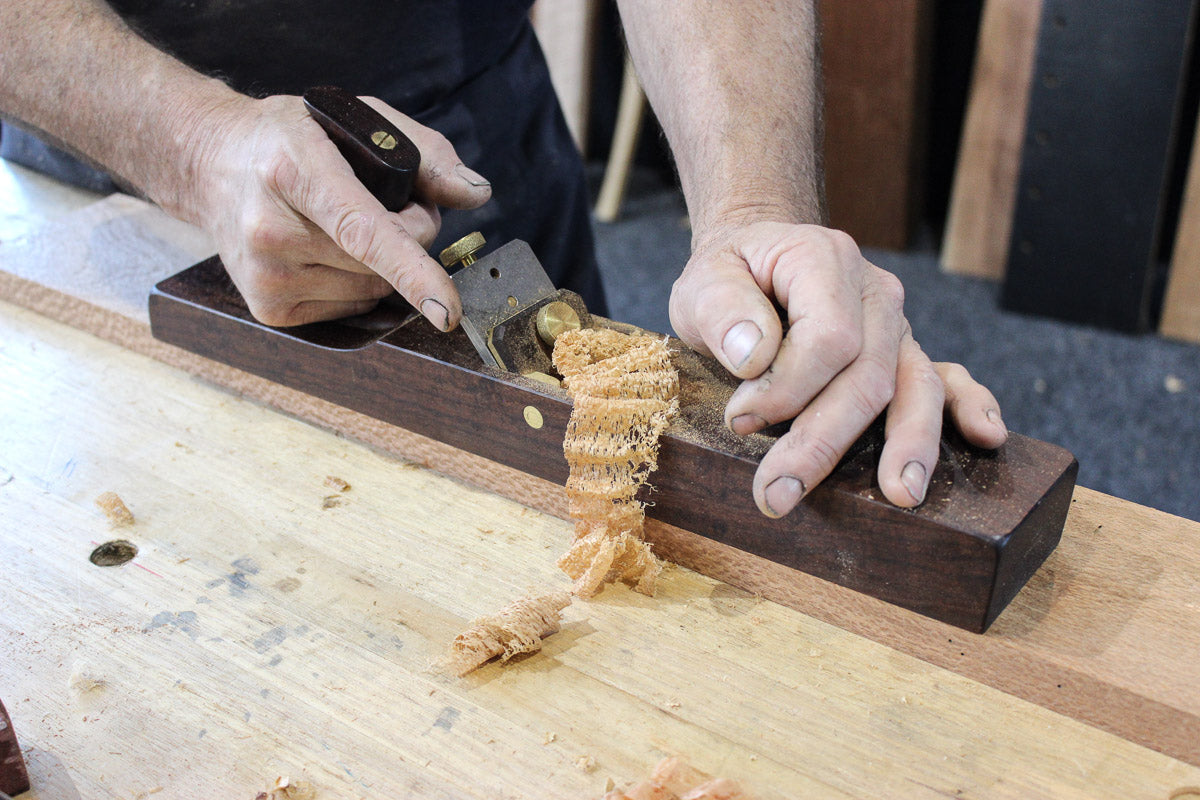

This Trying Plane (alternatively known as a jointer or jointing plane) has an adjustable blade set at 55 degrees - which excels on hard, cranky woods. Alternative use as a 85 degree cabinet scraper by reversing the blade. Used for smoothing long surfaces, and jointing long boards.

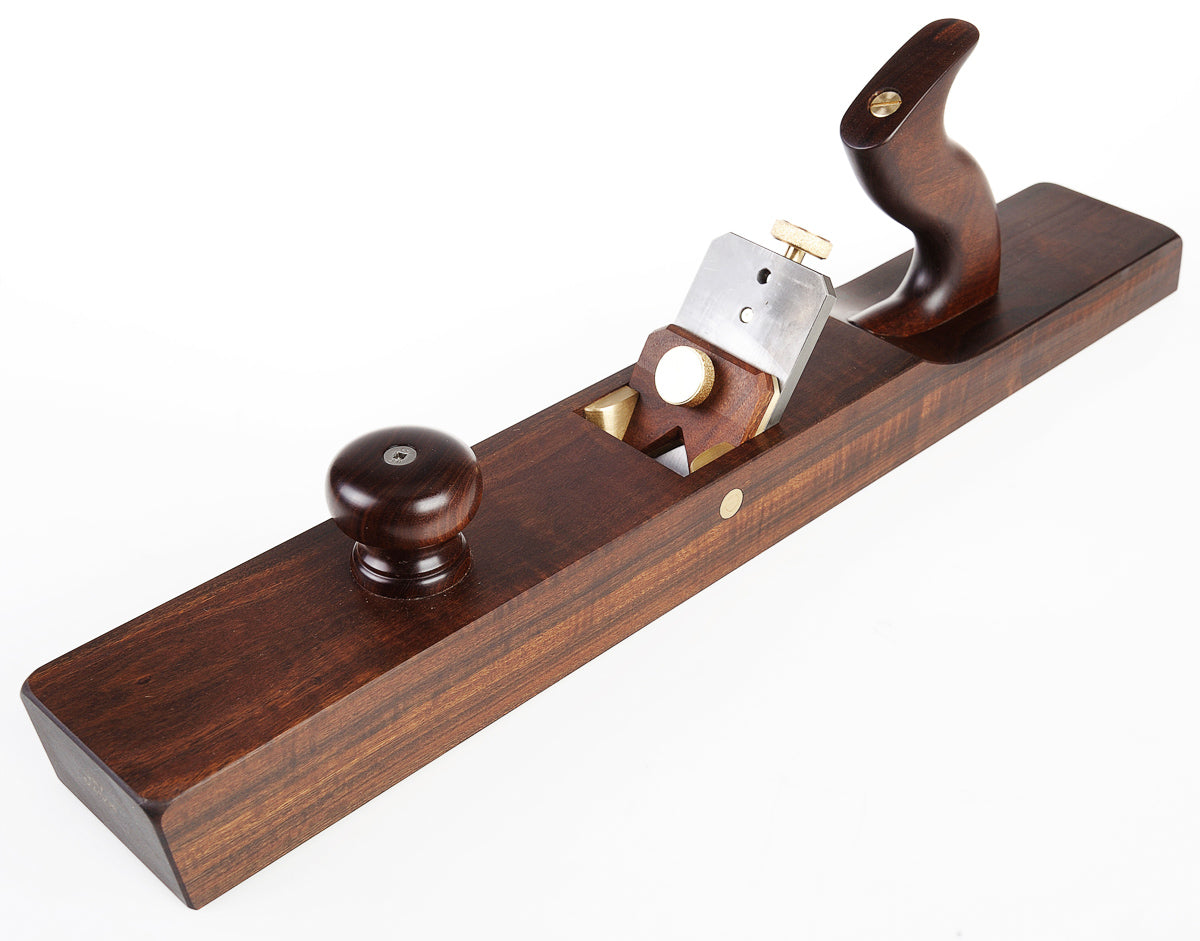

This Gidgee A55 trying plane is 460mm long x 67mm wide x 41mm high. Weighs 1.9Kg and has the option of a 50mm wide x 6mm thick x 101mm long Tool Steel (TS) blade hardened to Rc 62-64 or a High Speed Steel (HSS) blade hardened to Rc 62. The HSS is ideal if you plan to reverse the plane to bevel up and use it as a scraper on hard timber.

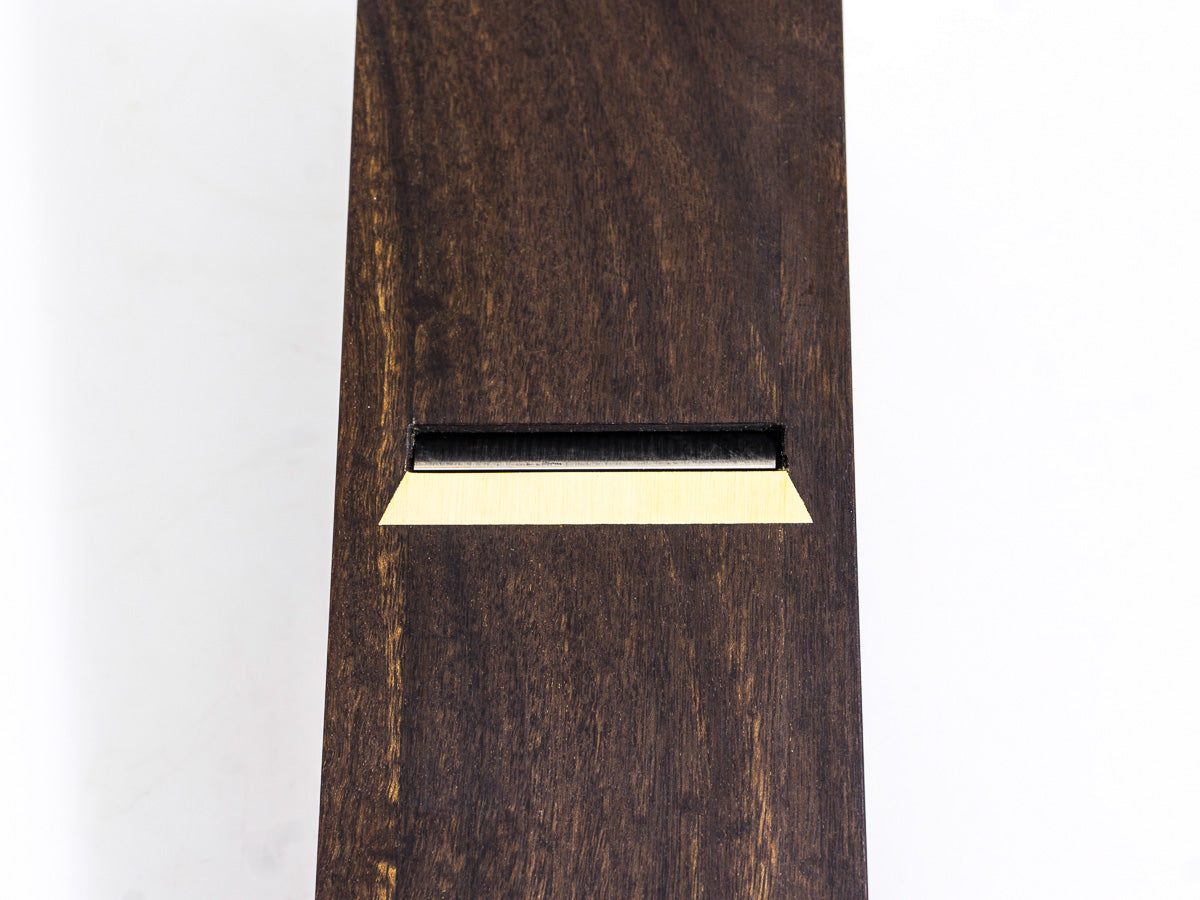

For adjustment there is a fine thread screw with lateral movement (10th of a turn gives meaningful change in depth). The mouth is protected by a brass rub plate. Knob and tote handle superbly shaped by Ross Burgess.

Works very well when used on a shooting board.  A cabinet makers work horse.
