1/8" dado plane

$684.00 AUD

Note: Please place your order and we will post your plane once made. The current wait time is 1-2 weeks.

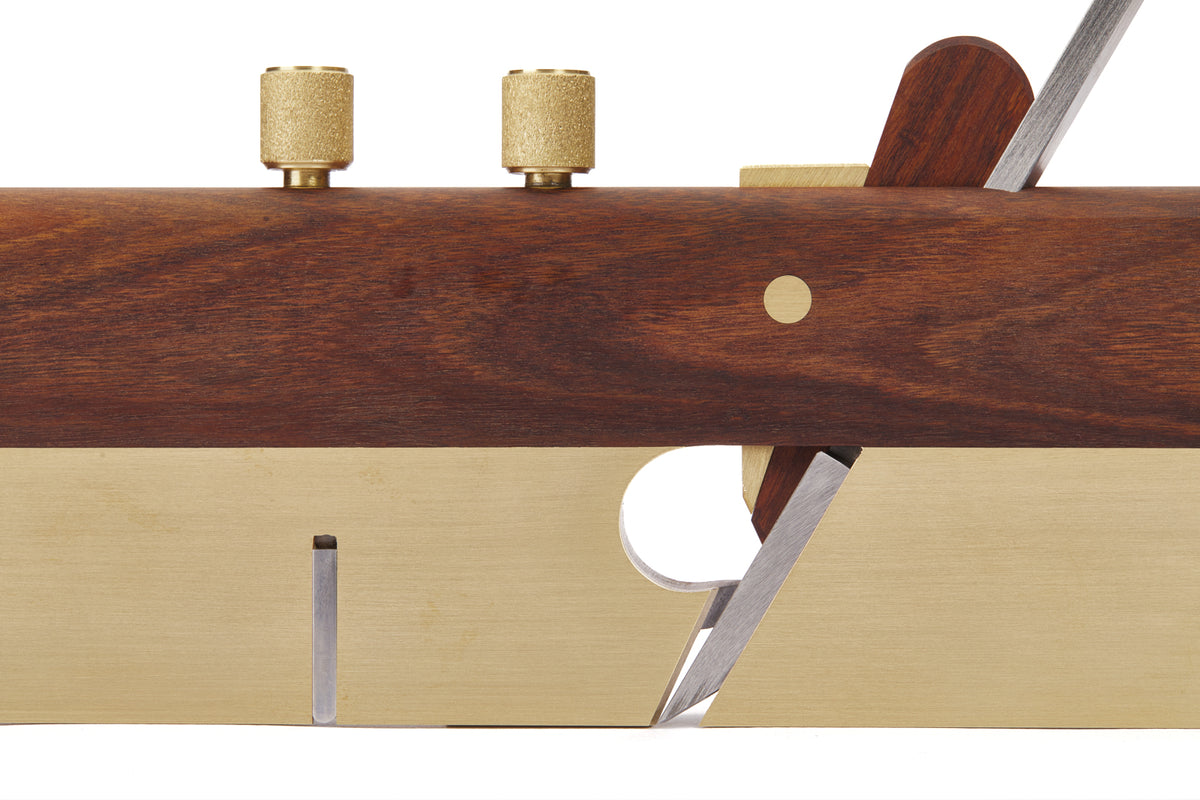

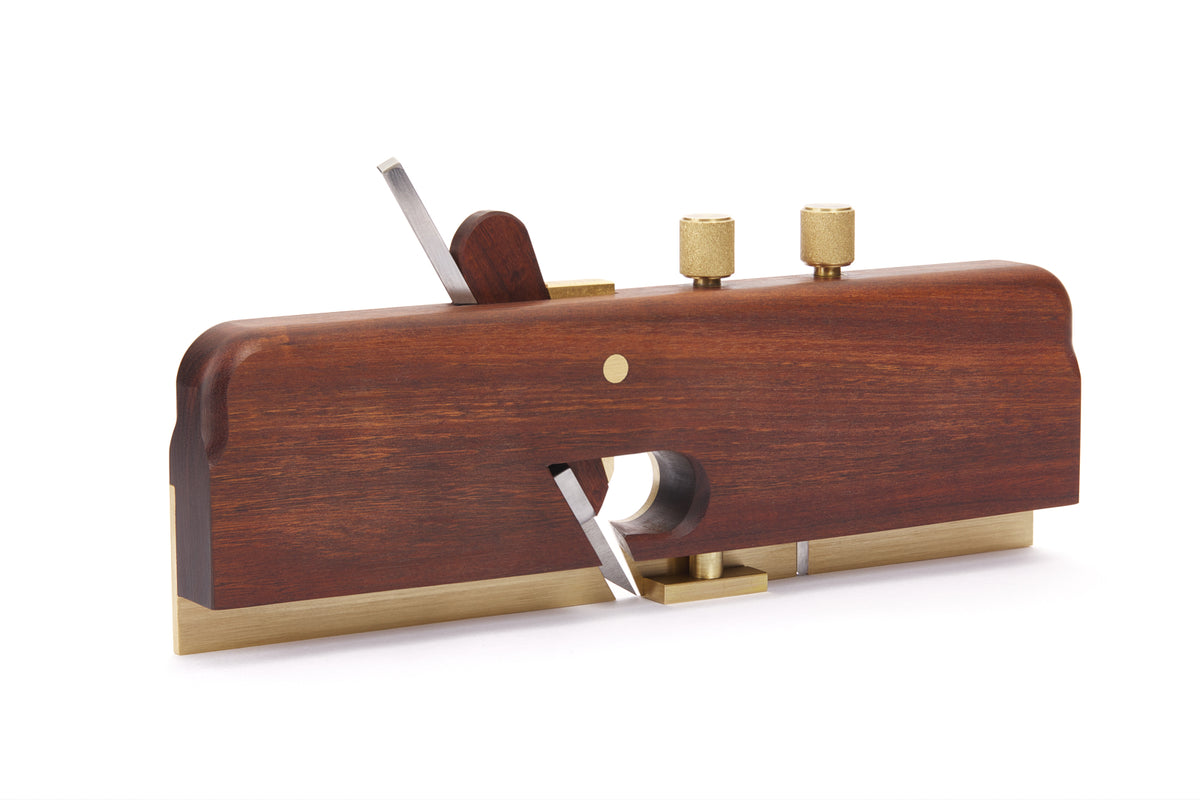

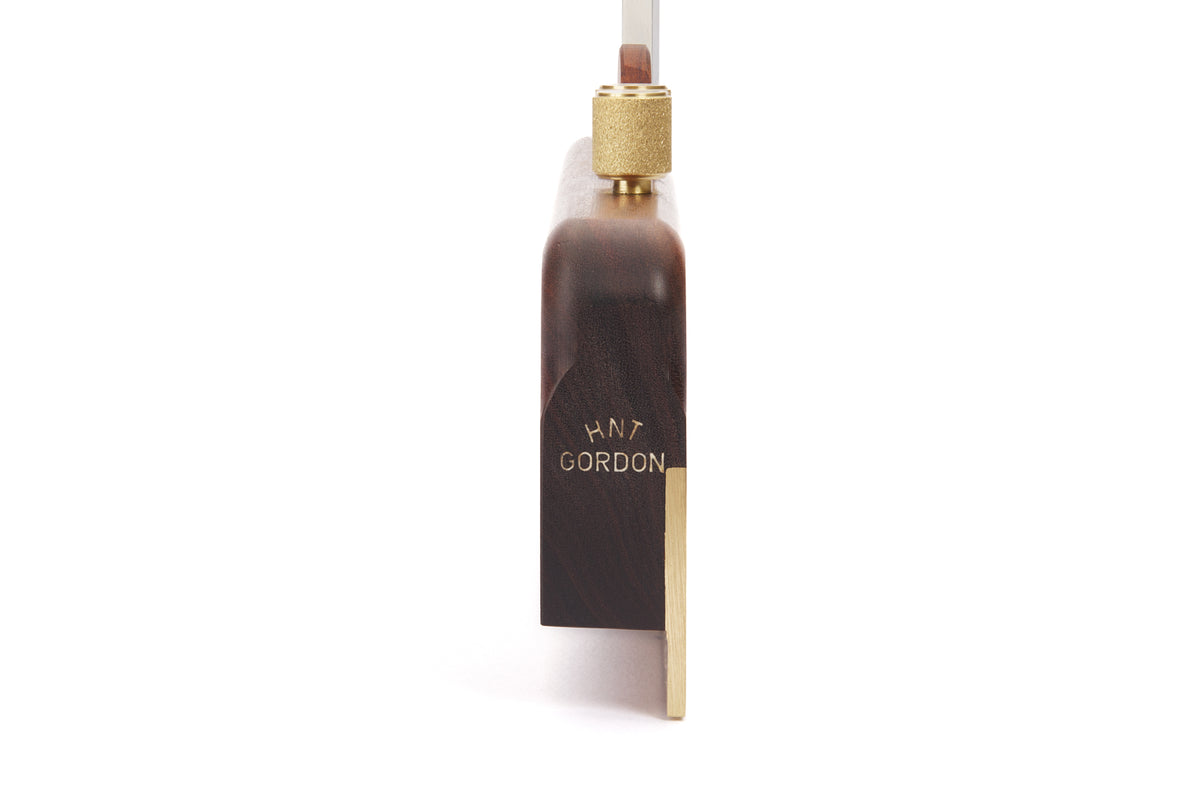

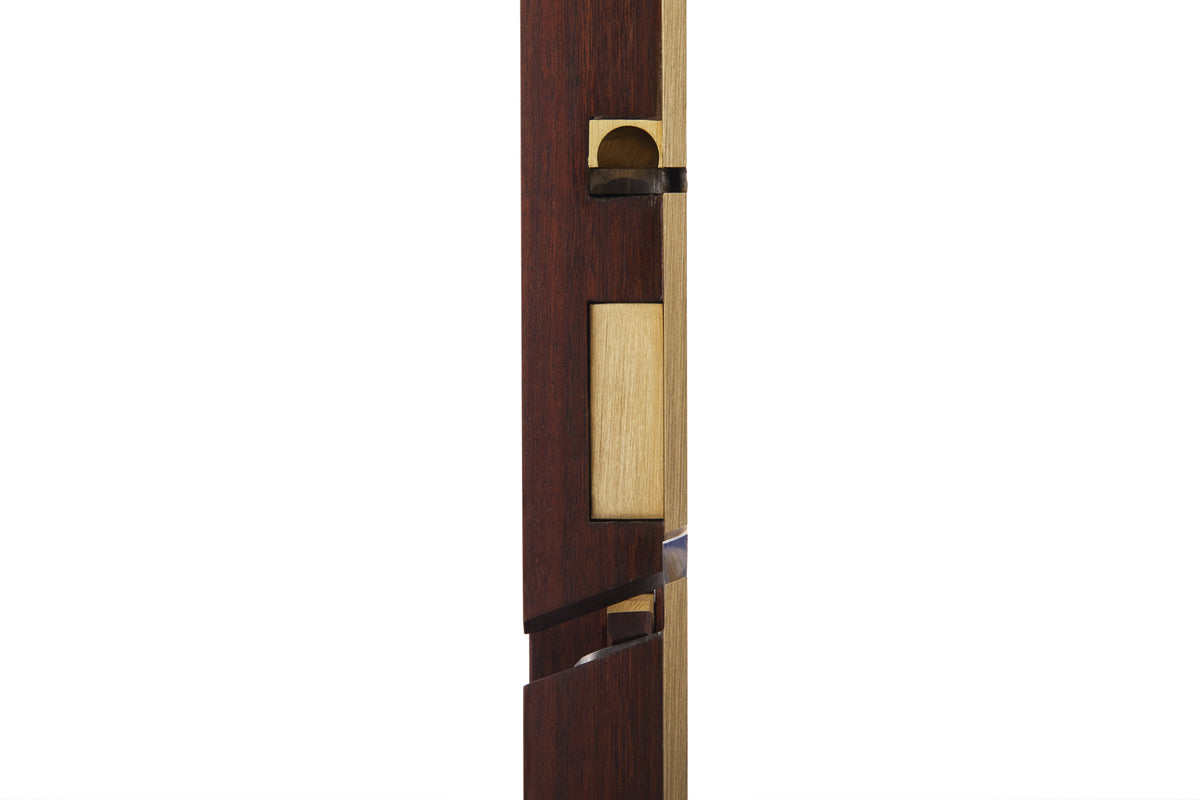

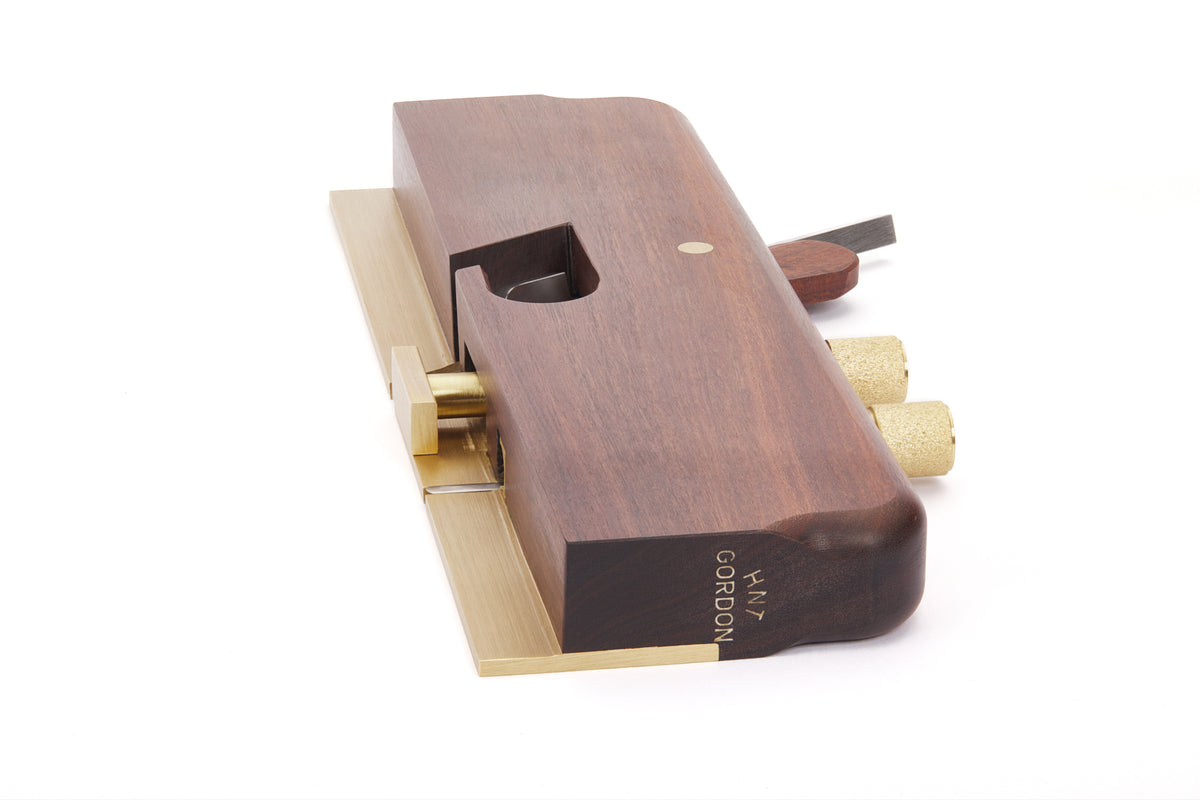

This gidgee 1/8" Dado Plane is 230mm long x 22 mm wide x 75mm high.
Weighs 0.9 Kg and has a 3/16" thick x 1/8" wide Tool steel blade hardened to Rc 62-64, plus a HSS T1 nicker Blade 1/8" wide with 9mm of useable blade which will last a long time. And the nicker is mechanically adjustable for easy set up.

It has a 60 degrees blade angle skewed at 20 degrees for a smooth finish across the grain or with the grain in cranky wood. Used to make a 1/8" dado (grove) across the grain or with the grain. The precision made nicker ensures a very neat and accurate dado as the wood fibres are cleanly severed when planing across the grain. The plane also has a mechanically adjustable depth stop so you can make the dado to a precise depth.

The plane comes with a complete guide for use and sharpening.

Customer Reviews
5.0 Based on 1 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Colin F.
Australia Australia
I recommend this product
1/8" dado plane

This plane is a high quality bespoke plane. I am very happy with it, but will not get to use it for a while yet. Thank you.
