1/2" Dado Plane

$696.00 AUD

Note: Please place your order and we will post your plane once made. The current wait time on this plane is approximately 1-2 weeks.

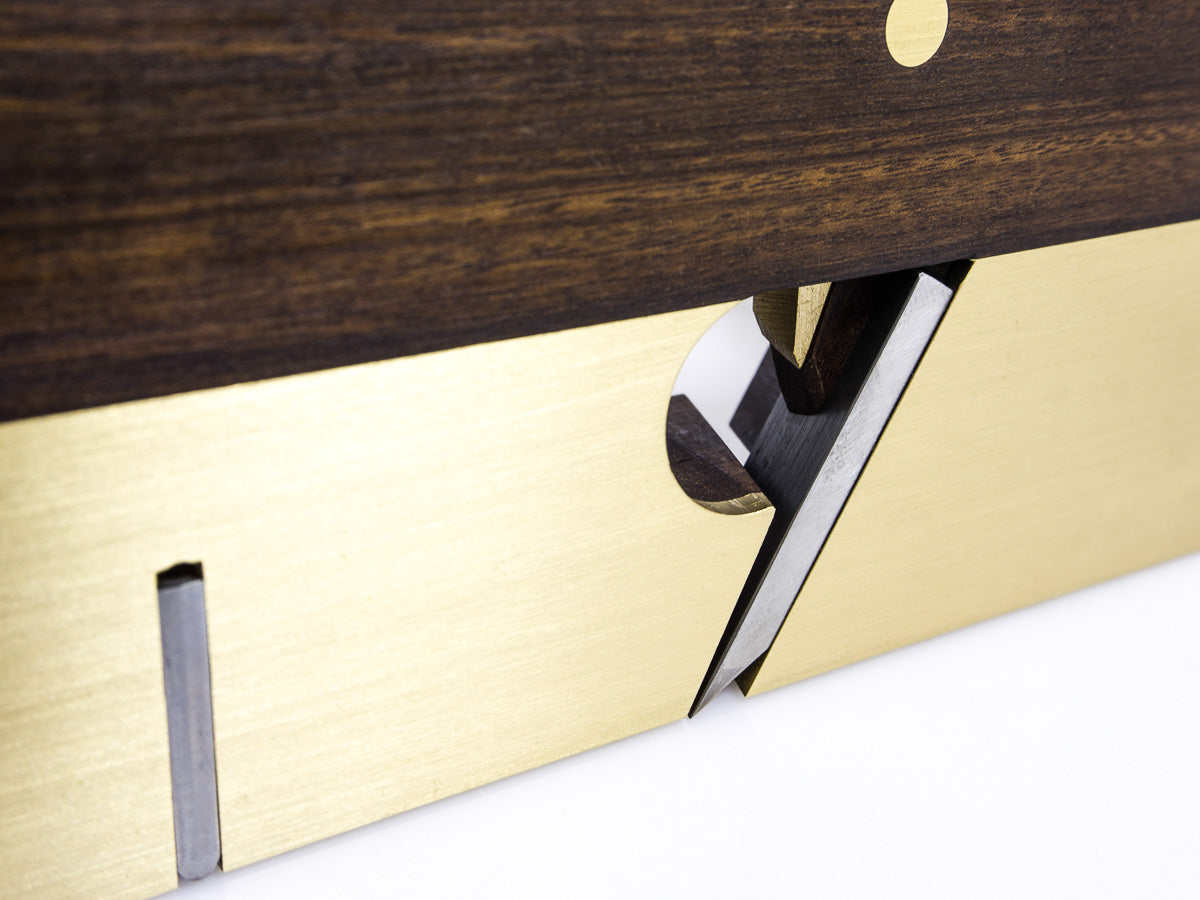

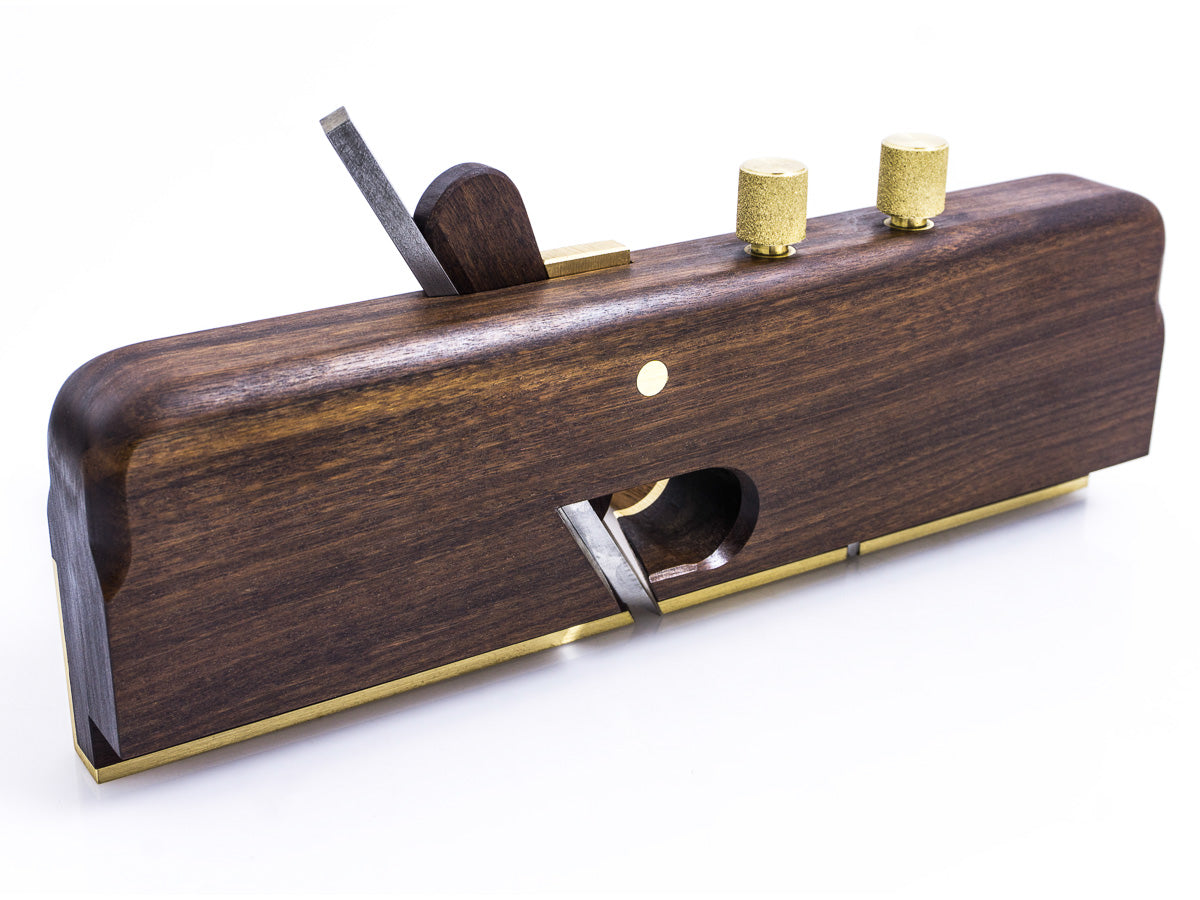

This gidgee 1/2" Dado Plane is 230mm long x 28 mm wide x 75mm high. Weighs 0.9 Kg and has a 3/16" thick x 1/2" wide Tool steel blade hardened to Rc 62-64, plus a HSS T1 nicker Blade 1/2" wide with 9mm of useable blade which will last a long time. And the nicker is mechanically adjustable for easy set up.

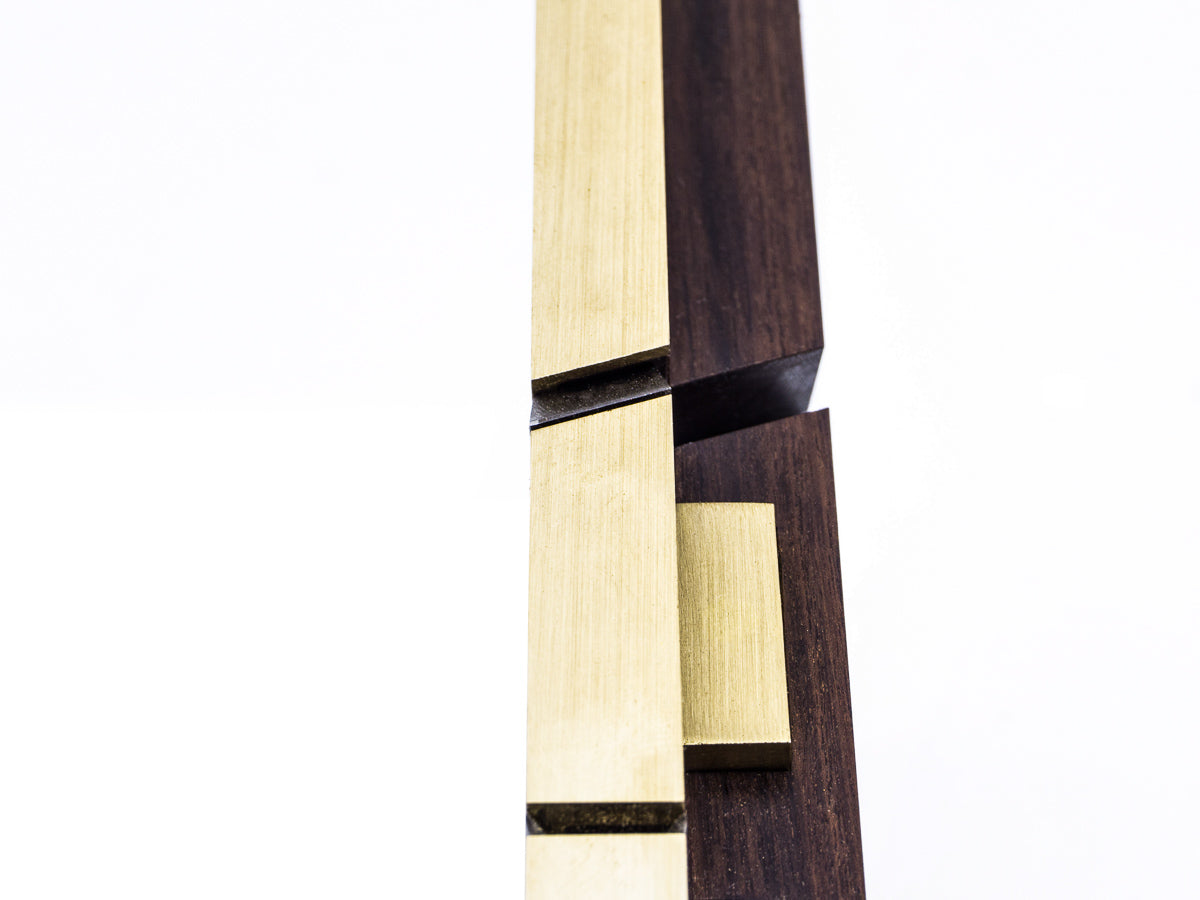

It has a 60 degrees blade angle skewed at 20 degrees for a smooth finish across the grain or with the grain in cranky wood. Used to make a 1/2" dado (grove) across the grain or with the grain. The precision made nicker ensures a very neat and accurate dado as the wood fibres are cleanly severed when planing across the grain. The plane also has a mechanically adjustable depth stop so you can make the dado to a precise depth.

The plane comes with a complete guide for use and sharpening.
